In hydraulic fracturing, well stimulation, and flowback operations, Figure 1502 plug valves operate under intense conditions, regularly managing fluids at pressures up to 15,000 PSI. To maintain a bubble-tight seal and ensure the plug turns smoothly within its body segments, continuous lubrication via specialized valving is non-negotiable.
However, injecting grease into a live, high-pressure flow line introduces a significant vulnerability: the risk of high-pressure backflow and grease port blowouts.
To eliminate this catastrophic failure point, industry standards dictate the use of double ball grease fittings (also known as double check valve grease fittings) rather than standard single-ball configurations.
1. What Is a Double Ball Grease Fitting?

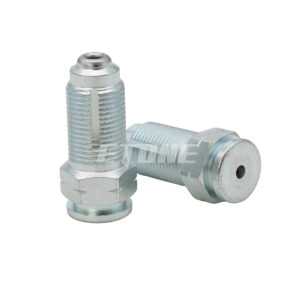

A double ball grease fitting is an ultra-high-pressure lubrication port containing two independent, tandem ball-check mechanisms back-to-back within a single machined housing.
When an operator attaches a high-pressure grease gun to the giant button head grease fitting, the incoming pressurized grease forces both internal balls off their seats against their respective springs, allowing lubricant to flow freely into the valve body cavity or around the plug valve repair kit seals.
As soon as the grease gun pressure is released, the backpressure from the well line, combined with internal heavy-duty springs, forces both balls back into their machined seats, creating a redundant, dual-stage mechanical seal.
3. Top Reasons Double Ball Grease Fittings Are Mandatory for Plug Valves
Deploying dual-ball high-pressure grease injection valves solves these oilfield vulnerabilities through redundant engineering:
A. True Redundant Safety Seal (Blowout Prevention)
The primary reason for using a double ball grease fitting is the fail-safe backup. If abrasive sand or chemical scaling compromises the primary (bottom) ball check, the secondary (top) ball check remains clean and sealed against its machined shoulder. This prevents toxic, high-pressure media from escaping, providing a critical buffer until the valve can be safely isolated and serviced.
B. Withstanding Severe Vibrations and Pressure Spikes
During heavy pumping, frac manifolds experience intense mechanical vibrations and sudden pressure spikes. The dual-spring design inside a double check valve grease fitting ensures that at least one sealing surface remains constantly engaged, eliminating micro-leakage caused by harmonic vibration.
C. Enhanced Compatibility with Severe Service Metallurgy
Premium industrial grease fittings featuring double ball checks are engineered from specialized materials like zinc-plated 4140 chromoly steel, 316 stainless steel, or Monel springs. This ensures the internal sealing mechanism tracks NACE MR0175 standards for sour service, preventing hydrogen embrittlement.
4. Complete System Maintenance: Looking Beyond the Injection Port
A double ball grease fitting can only protect your valve if the surrounding components are maintained with identical precision. When utilizing your valve repair kit, ensure your field crew verifies the entire assembly:
Thread Protection Brass Caps: Always cover your giant button head grease fittings with a heavy-duty brass top hat or a rugged thread protection cap to prevent dirt and rain from packing into the top ball cavity.
Plug Valve Internal Seals: Regularly inspect and replace worn elastomer side seals and segments using a reliable aftermarket plug valve rebuild kit.
Downstream Iron Protection: Ensure that parallel manifold segments, including inline check valve kits and plunger pump fluid end parts, are checked for erosion tracking alongside your regular valve lubrication scheduling.
Why Choose Etone Oil as Your High-Precision Grease Fittings Factory?
As an established China high-precision valve parts manufacturer, Etone Oil specializes in multi-axis CNC machining of critical oilfield consumables. We do not mass-produce generic hardware; we fabricate severe-duty flow control equipment engineered to save lives and maximize runtime.
Flawless Seat Micro-Finishes: Our internal seating surfaces are precision-honed to eliminate micro-gaps, ensuring a bubble-tight metal-to-metal seal under 10K and 15K PSI.
100% Interchangeability: Our 3/4-16 UNF and 1/2″ NPT high-pressure grease injection valves match global OEM designs seamlessly.
Rigorous Pressure Batch Testing: Every batch of our corrosion-resistant grease fittings undergoes hydro-testing to guarantee field reliability before shipment.
