In high-pressure oil and gas production, fluid dynamics can be brutal. Controlling the direction of flow and preventing catastrophic backflow is critical to protecting upstream equipment like blenders, manifolds, and high-pressure plunger pumps. This is where the flapper check valve comes into play.
But what exactly goes into a flapper check valve kit, How does it maintain a drop-tight seal under thousands of PSI, and when should you rebuild it?
In this technical guide, we’ll explore the inner workings of oilfield check valves, highlight the essential components of a check valve repair kit。
1. What Is a Flapper Check Valve?
A flapper check valve is a directional flow control valve designed to allow fluids or slurries to flow freely in one direction while automatically preventing backflow (reverse flow). Unlike dart style or ball check valves, a flapper valve features a hinged disc (the “flapper”) that swings away from the valve seat when forward pressure is applied.
In fracturing, cementing, and well servicing operations, these valves are typically rated for Figure 1502 union connections, capable of withstanding working pressures up to 10,000 PSI or 15,000 PSI.
2. How Does a Flapper Check Valve Work?
The operation of a flapper check valve relies entirely on pressure differentials and gravity, making it a self-acting safety device.
Forward Flow (Valve Open): When the fluid pumped from the fluid end reaches the inlet, the forward kinetic energy and pressure push the flapper disc upward, compressing the internal spring (if equipped). The valve opens, allowing low-restriction fluid flow.
Reverse Flow / Backflow (Valve Closes): As soon as the pumps shut down or upstream pressure drops, gravity combined with the reverse force of the fluid pushes the flapper back against the check valve seat.
The higher the backpressure, the tighter the flapper presses into the elastomeric seal, achieving a reliable, drop-tight seal to prevent dangerous high-pressure blowbacks.

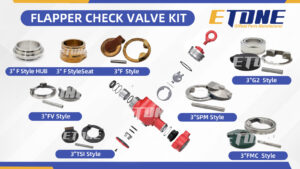

3. What is Inside a Flapper Check Valve Kit?
A flapper check valve is exposed to highly abrasive proppants (like fracking sand), corrosive chemicals, and extreme velocity. Over time, the internal sealing components inevitably degrade.
Instead of replacing the entire heavy, expensive valve body, fleet maintenance engineers utilize a flapper check valve kit (or inline check valve repair kit) to completely rebuild the internals.
A premium oilfield check valve parts rebuild kit from a specialized valve repair kit manufacturer typically includes:
The Flapper/Disc: Precision-machined to ensure a perfect perpendicular alignment with the seat.
Elastomeric Seal/O-Rings: High-performance compounds like HNBR plug valve seals materials or Viton, optimized for standard or sour service (H2S environments meeting NACE MR0175).
Hinge Pin & Cotter Pin: Heavy-duty, corrosion-resistant alloy pins that hold the flapper in place.
Torsion Spring: Provides assistance to ensure fast, positive closure before reverse flow can gain velocity.
Body Gaskets & Seals: To prevent external leakage at the valve bonnet.
4. Key Signs Your Flapper Check Valve Needs a Rebuild
Waiting for a check valve to fail completely can lead to catastrophic damage to your plunger pump fluid end parts. Regularly monitor your flowlines for these common failure indicators:
Seat Leakage (Backflowing): If pressure gauges indicate pressure bleeding backward past the valve, your check valve seat or elastomer seal is likely washed out by sand.
“Water Hammer” or Loud Slamming: This happens when the internal spring loses tension or the hinge pin becomes worn, causing delayed closing and violent pressure shocks.
External Bonnet Leaks: Indicates that the high-pressure bonnet seals inside your oilfield valve maintenance kits need immediate replacement.
5. Why Source Your Rebuild Kits from Etone Oil?
As a trusted precision valve parts factory in China, Etone Oil specializes in high-precision CNC machining for the global oilfield service sector. We manufacture aftermarket oilfield valve trim parts that deliver identical performance to top-tier brands (such as FMC and SPM) at a fraction of the cost.
Advanced Material Science: We offer stainless steel check valve kits and custom elastomeric seals tailored for high-temperature, high-pressure (HTHP), and sour service operations.
One-Stop Flow Control Sourcing: Beyond check valves, we supply a comprehensive range of wellhead components, including high-pressure grease injection valves, durable heavy-duty brass caps for thread protection, and premium plug valve repair kits.
Strict Quality Control: Every component is machined to strict micron-level tolerances, ensuring seamless compatibility and 100% field interchangeability.
Keep your flow lines running safely with Etone Oil’s precision-engineered bulk valve repair kits and custom valve components. If you have any needs in this regard, please contact us at: pe@etoneoil.com
