In today’s upstream and mid‑stream oil‑and‑gas industry, the profitability of field operations hinges heavily on dependable equipment performance. High‑pressure flow‑control systems, designed to function within a working‑pressure range of 5,000‑15,000 PSI, are constantly subjected to abrasive slurry erosion, severe cyclic mechanical impact, drastic temperature swings, and corrosive gases including hydrogen sulfide and carbon dioxide.
Failures occurring on high‑pressure valves bring about economic losses that go well beyond the cost of spare‑part replacement. Non‑Productive Time (NPT), emergency well shutdowns, environmental cleanup expenses, and specialist on‑site labor can rapidly drive up operating costs.
Field operators have long been presented with a difficult trade‑off: either purchase overpriced replacement components from the Original Equipment Manufacturer (OEM), or select budget‑friendly aftermarket parts that are prone to premature breakdown.
Advanced multi‑axis CNC machining now delivers a better‑performing solution: custom‑made precision CNC‑machined replacement components. By producing high‑wear valve internal parts to micron‑level tolerances with custom‑formulated metal alloys, operators can substantially cut long‑term valve maintenance expenditure, avoid unplanned non‑productive downtime and prolong the service lifespan of their equipment.
1. The True Cost of Oilfield Valve Maintenance
To optimize maintenance budgets, procurement managers and field engineers must look beyond the initial purchase price of spare parts. Total Cost of Ownership (TCO) in pressure control equipment includes four main cost drivers:
Direct Component Costs
Standard valve overhauls require replacing wearable internals, such as plugs, side segments, seal rings, flappers, stems, and elastomeric packings. Sourcing whole new valve assemblies for every overhaul cycle is financially unsustainable.
Non‑Productive Time (NPT)
Unplanned valve malfunctions during high‑pressure hydraulic fracturing or continuous coiled‑tubing work will trigger an instant system halt. Hour‑by‑hour downtime for drilling rigs can range from $10,000 to well over $50,000. Avoiding even a single hour of non‑productive time is enough to offset the full‑season expense of stocking high‑precision repair kits for your whole equipment fleet.
Safety Risks and Environmental Fines
A leaking valve on a high-pressure manifold presents major blowout hazards and fugitive emission risks. Regulatory penalties and environmental cleanup operations from valve seal failures far exceed the cost of preventative maintenance.
This practical guide breaks down the cost‑related factors behind oilfield valve maintenance, illustrates how custom CNC fabrication improves the performance of flow‑control hardware, and demonstrates how proactive wear‑part replacement helps preserve your field‑level capital investment.
2. How Custom Precision CNC Machining Lowers Operating Costs
Custom CNC manufacturing transforms low-tier wear parts into high-performance, long-life components. Utilizing 5-axis CNC turning, internal grinding, and automated Coordinate Measuring Machine (CMM) verification, custom parts deliver measurable operational savings.
Reliable‑Sealing Structures Guard Against Fluid Washout
Components machined by precision CNC turning hold strict concentricity and dimensional tolerances of ±0.0005 inches (±0.012 mm). Once fitted, the side segments sit flush against the inner plug face to eliminate microscopic clearances, stopping high‑speed sand‑laden slurry from abrading internal surfaces.
Lower Operating Torque Extends the Service Life of Actuation Systems
Parts processed with micro‑grinding can achieve ultra‑smooth surface finishes down to Ra 16 μin (0.4 μm). Uniform retention of lubricant films on these refined metal surfaces cuts opening‑and‑closing torque by as much as 35 %, shielding drive stems, gear sets and automated actuators from damaging mechanical overloading.
Application‑Specific Metal Alloys Solve Demanding Down‑Hole Conditions
Standard OEM spare parts are generally manufactured to generic material specifications. Custom CNC production gives field operators the flexibility to select alloy grades matched to unique well‑site environments:
AISI 4140 / 4130 High‑Strength Alloy Steel: Quenched and tempered to deliver superior tensile strength for conventional high‑pressure fracturing work.
17‑4PH Stainless Steel: Provides enhanced corrosion resistance and high yield strength for service in harsh, aggressive‑fluid environments.
Inconel 718 / Monel: Formulated for sour‑gas projects and fully compliant with NACE MR0175 / ISO 15156 standards.
Tungsten Carbide Linings: Embedded within choke beans and valve seats to withstand severe erosion from proppant particles.
Faster Field Rebuilding and Turnaround
Precision CNC parts deliver true “drop-in” compatibility. Field technicians can rebuild valves directly on the manifold without manual grinding, filing, or custom shimming. This cuts field maintenance hours in half.
3. Comprehensive Oilfield Spare Parts Portfolio from Etone Oil
Maintaining flow-line integrity across a frac site or wellhead requires precision components across every valve assembly. At Etone Oil (www.etoneoil.com), we manufacture a full portfolio of precision CNC oilfield spare parts built for severe working conditions:
1. Plug Valve Repair Kit
This repair kit serves as the core wear‑protection solution for 1‑inch, 2‑inch, and 3‑inch 1502/1002 plug valves.
Match‑Ground Side Segments: Fabricated to precisely match the internal geometry of valve cavities, enabling uniform load distribution when exposed to high back‑pressure.
CNC‑Fabricated Inner Plug: Its alloy‑based core undergoes heat‑treatment, and ultra‑smooth sealing surfaces are implemented to minimize friction during rotation.
Elastomeric Sealing Rings and Backup Rings: Constructed using high‑performance HNBR or Viton, these parts safeguard against explosive decompression damage while stopping seal extrusion.
High‑Pressure Lubrication Fittings: Equipped with accurately machined threads, they keep the check‑valve structurally intact at operating pressures reaching 15,000 PSI.

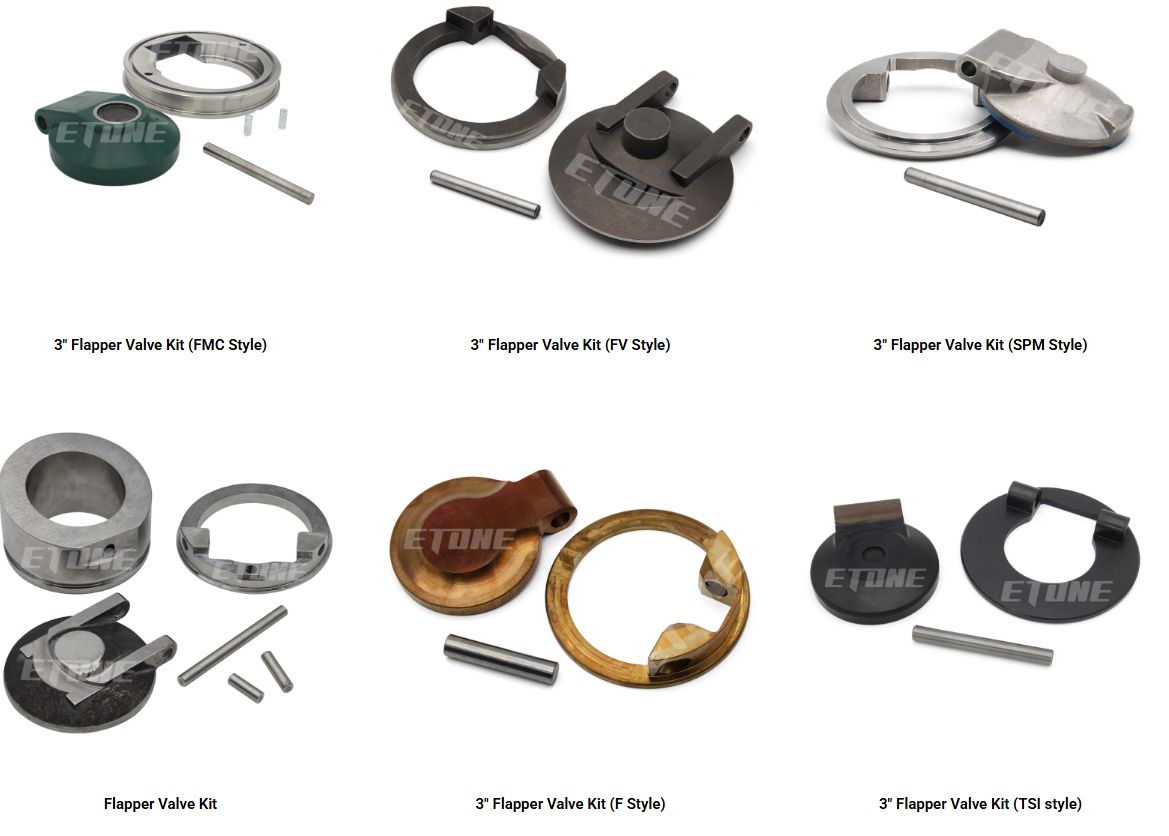

2. Flapper Check Valve Repair Kit
Unidirectional check‑valve assemblies safeguard mud pumps and fracturing trucks against hazardous high‑pressure reverse flow. A full‑set flapper check valve repair kit consists of the following components:
High‑Precision Flapper Plates: Precision‑lapped flat to deliver instant, bubble‑tight shut‑off performance against strong back‑pressure.
Hardened Hinge Pins: Produced from high‑strength alloys to avoid pin fracture caused by violent fluid hammer shocks.
Torsion Return Springs: Tuned spring force guarantees rapid valve closure the moment fluid flow stops.
Heavy‑Duty Elastomeric Seats: Integrally‑bonded sealing rings that stand up to proppant embedment and abrasive erosion.

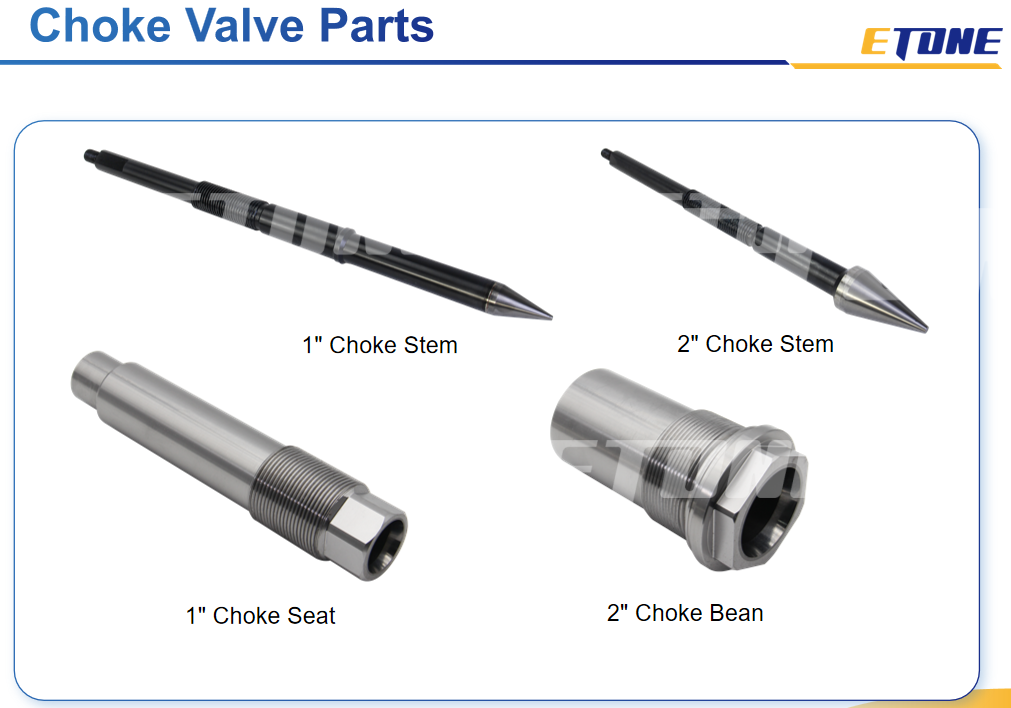

3. Choke Valve Parts & Tungsten Carbide Components
Choke manifolds are tasked with sustained pressure reduction and flow‑velocity regulation throughout flowback and well‑testing operations. Our custom‑built choke valve components cover:

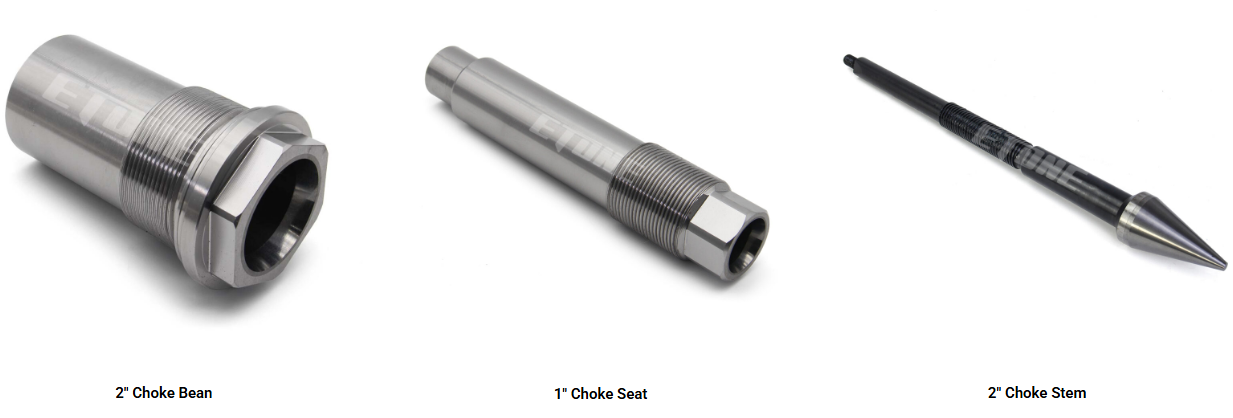

Tungsten Carbide Choke Beans: Reinforced with solid tungsten‑carbide sleeves to combat severe proppant abrasion and cavitation‑induced erosion.
Adjustable Choke Stems & Needles: Precision-ground stems designed to deliver smooth, precise orifice adjustment under differential pressure loads.
Seat Inserts and Bonnet Assemblies: Custom CNC machined to fit choke equipment specifications from Cameron, Swaco, and McEvoy.
4. Relief Valve Repair Kit
Emergency pressure relief valves act as the final mechanical safeguard on high-pressure manifolds. An Etone Oil Relief Valve Repair Kit contains:
Calibrated Alloy Relief Springs: Engineered to maintain constant spring rates across wide temperature windows.
Ground Stainless Steel Discs: Machined flat to prevent micro-leaks prior to pressure set-point activation.
High-Temp Elastomeric Seals: Designed for quick reseating after pressure discharge

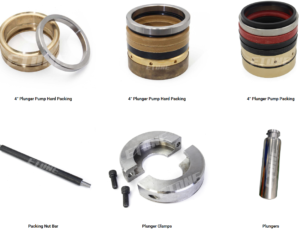

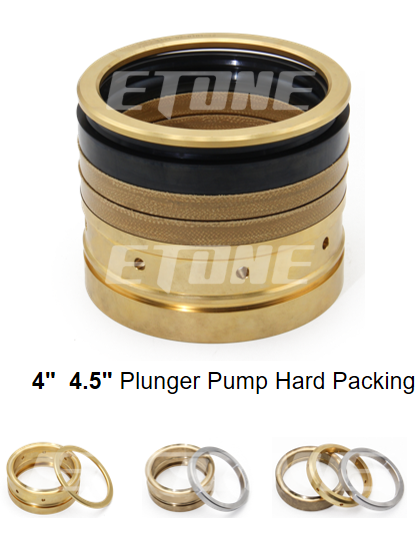

5. High-Pressure Plunger Pump Packing
Frac pumps and triplex/quintuplex mud pumps subject fluid ends to severe pressure cycles. Custom Plunger Pump Packing features:
V-Ring Pressure Sets: Engineered using high-spec HNBR, Kevlar-reinforced fabric, and fluoroelastomers.
Precision Adapter & Header Rings: CNC-machined brass, stainless steel, or aluminum-bronze support rings that prevent packing extrusion under high pressure.
Lantern Rings: Machined with uniform flush channels for even fluid distribution and cooling.
4. Step-by-Step Field Overhaul Guide: Maximizing Replacement Kit Life
Installing a high-precision Plug Valve Repair Kit correctly ensures maximum operational life. Maintenance crews should follow this field overhaul sequence:
System Isolation and Depressurization: Isolate the target manifold section, open pressure bleed valves, and verify zero residual line pressure before starting work.
Disassembly & Cavity Cleaning: Remove the bonnet cap, stem assembly, inner plug, and worn side segments. Wash the internal valve housing with solvent to clear out hardened grease, proppant grit, and scale.
Internal Bore Inspection: Inspect the internal body walls for structural washouts. If the forged body cavity meets tolerance standards, proceed with internal component installation.
Installing Precision Side Segments: Apply high-pressure valve grease to the new elastomeric seal rings and insert them into the rear recesses of the custom CNC side segments. Place the segments smoothly into the valve body cavity.
Plug Insertion & Alignment: Coat the precision CNC plug with synthetic valve lubricant and lower it carefully between the side segments. Ensure drive flats align correctly with the top bonnet indexing mark.
Torque and Reassembly: Reinstall bonnet bolts, tightening them in an alternating star pattern to manufacturer specification.
Slash Your Oilfield Maintenance Costs Today
Stop allowing low-grade wear parts to drive up maintenance budgets and cause unexpected NPT. Upgrade your flow-line equipment with custom precision CNC replacement parts built to withstand high pressure, severe abrasion, and harsh chemical environments.
Visit www.etoneoil.com today to explore our complete catalog of oilfield spare parts, download technical spec sheets, or request a custom quote from our engineering sales team. Please contact: +86 135 3728 5097 or pe@etoneoil.com
